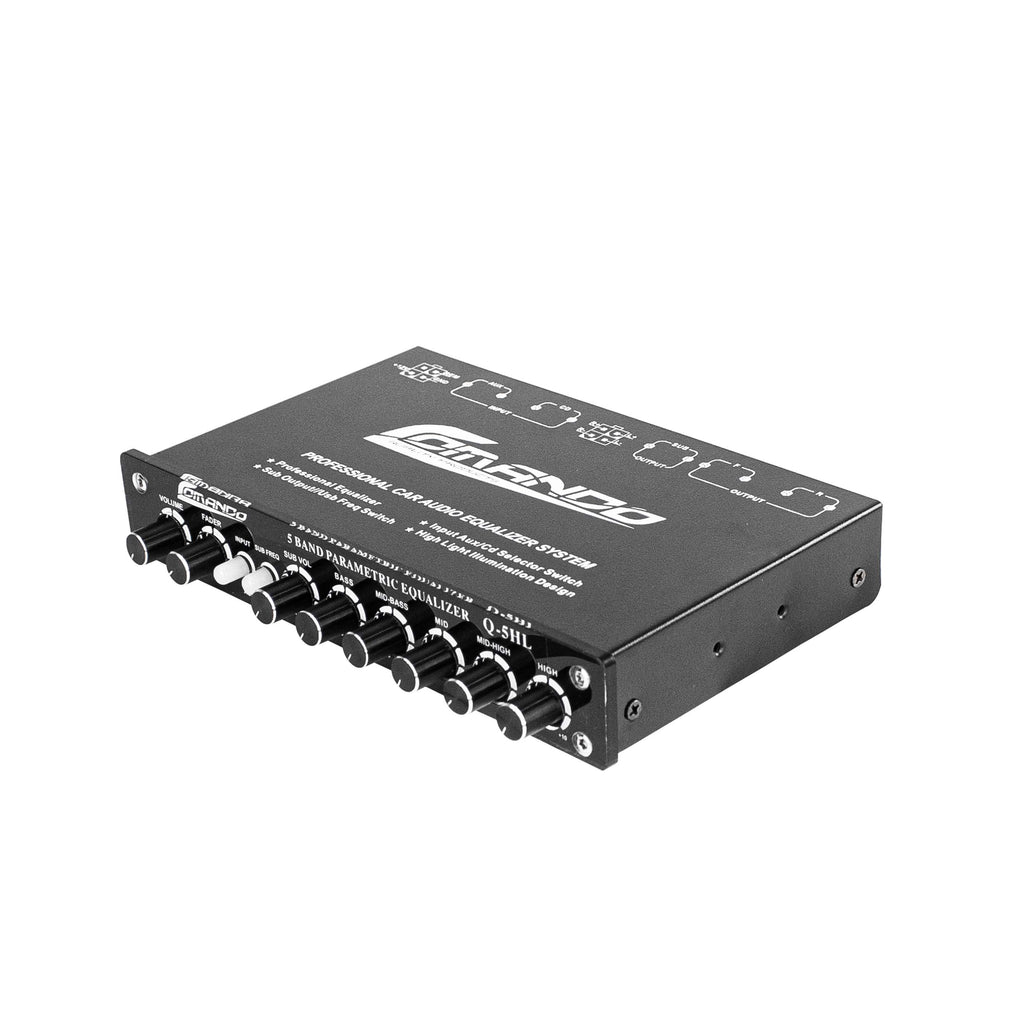

Description
- Master volume control with up to 9.15V RMS of output.
- Center-detented boost/cut controls for each band.
- Independent L&R input gain adjustments.
- Input high to low.
- On board 30V switching power supply with high level input feature.
Technical Data
|
Power Supply |
11-15V DC Neg, Ground |
|
Max.Output Voltage |
8 Vlots RMS |
|
T.H.D |
0.01% |
|
Frequency Response |
10Hz-20KHz±1dB |
|
S/N Ratio |
>95 dB |
|
Stereo Separation |
>-60 dB |
|
Equalization Range |
±15 dB |
|
Input Impedance |
20 K ohms |
|
Input Sensitivity |
0-1.6V RMS |
|
Input Sensitivity for Impedance High-Low |
0.8V RMS |
