Description

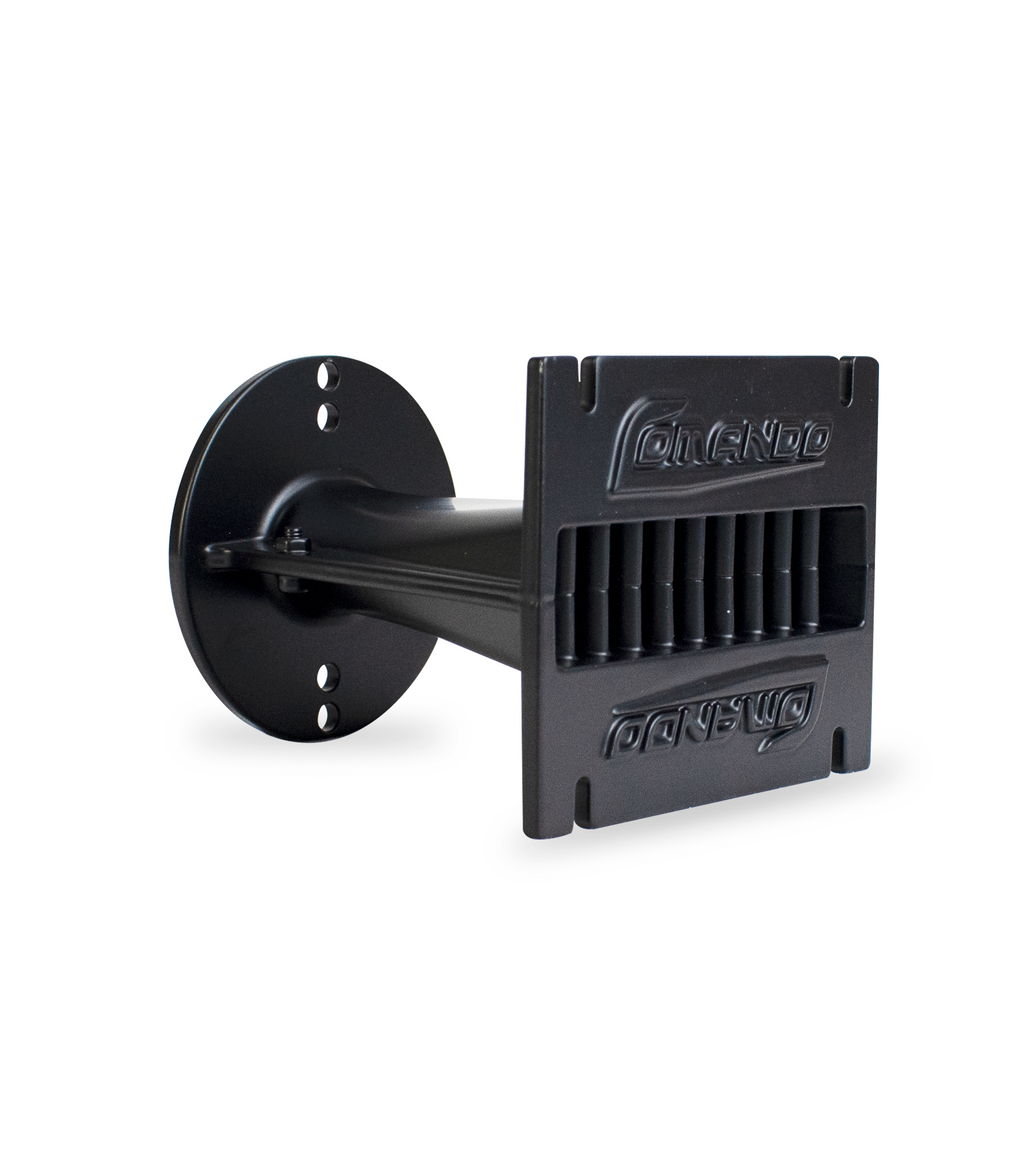

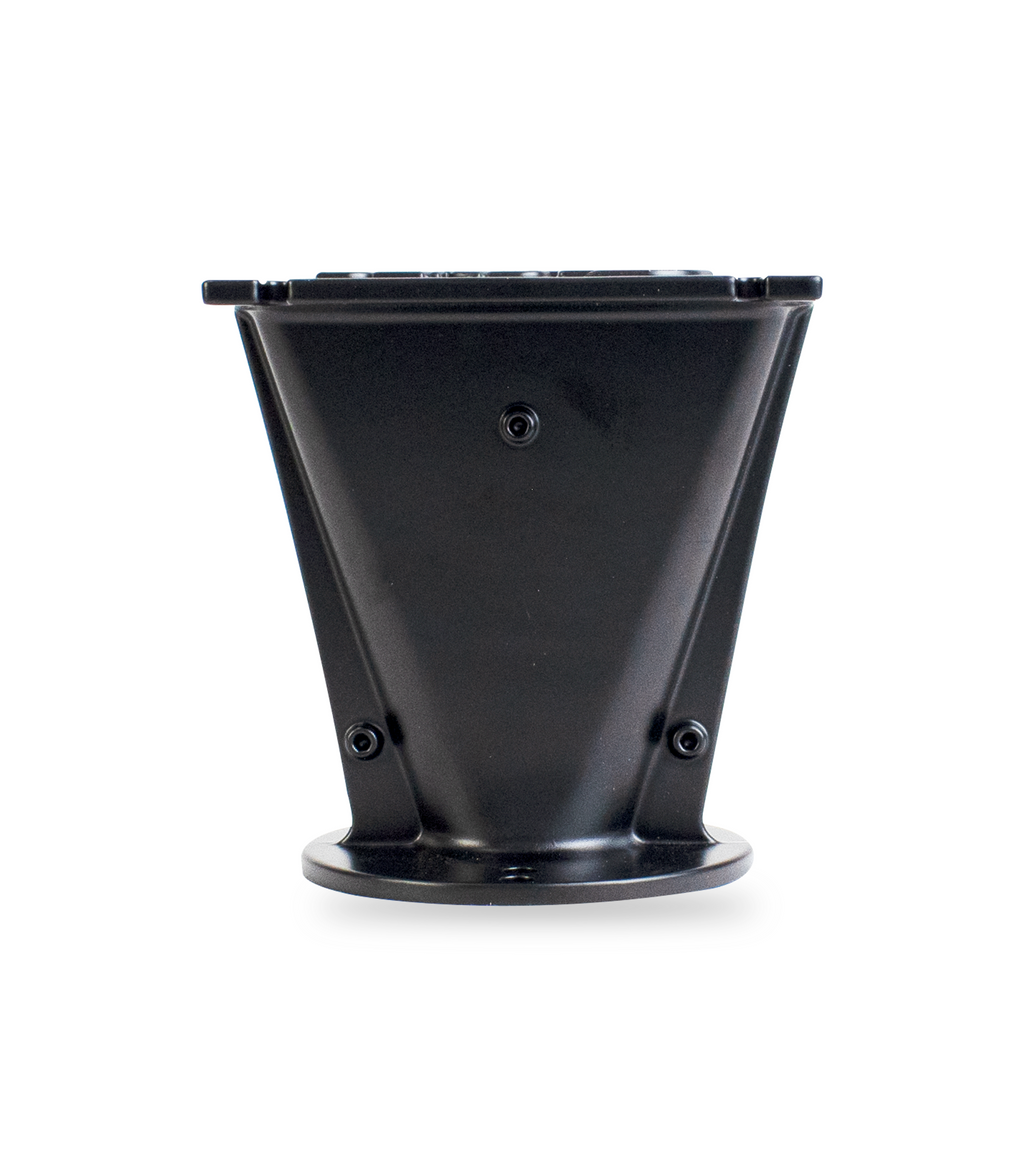

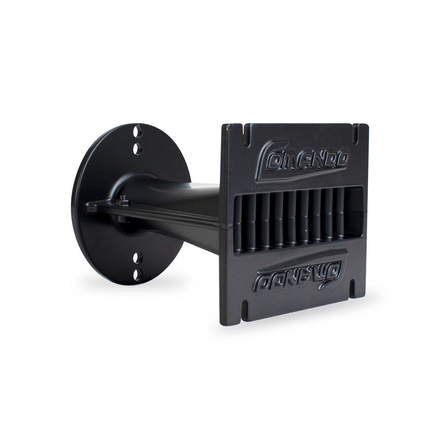

CX-HR100-GREEN was designed to project sound and obtain a higher tone while maintaining sound quality and improving long throw reach. Its compact design will allow it to fit into any size project. We used a high grade paint finish to help your project stand out among the rest of your competitors.
Technical Data
| Throat Diameter |
1.02''/25.8mm |
| Mounting Type |
Bolt On
|
| Hole dimensions |
0.25"/6.5mm
|
| Nominal Coverage |
|
| Flare type |
Exponential |
| Material |
Aluminum |
| Finish / Coating |
Black |
| Dimensions |
|
| Height |
3.47"/88.10mm |
| Width |
4.33"/110mm |
| Depth |
4.4" /111.8mm |
| Mount Depth |
4.21"/107mm
|
| Baffle Cutout |
|
|
Diameter Circle
|
3.4''/87mm |
