Description

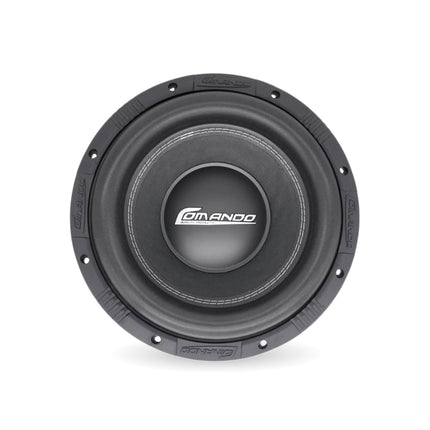

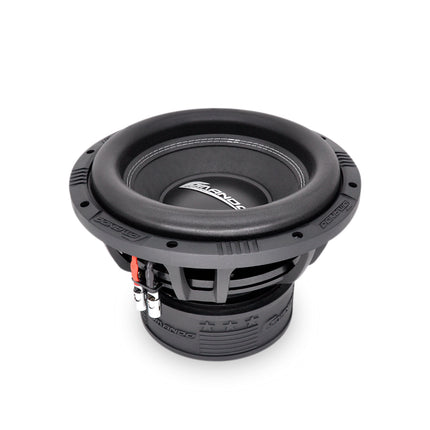

3S-124 is a powerful 12" inch coil 4 ohm car subwoofer speaker.
It has a structural design that allows it to be functional and efficient, providing great resistance to prolonged use in a safe way and at the same time offering excellent sound. This subwoofer is made with:
- 12inch Black texture finish die-casting basket.
- Fiber reinforced paper cone.
- Foam surrounds silver stitching.
- 3'' 4-layer high temperature resistant CCA wire voice coil.
- Paper dust cap.
- Triple stacked high energy 234 Oz magnets.
- Direct cooling design T-yoke with black anodized treatment.
- Double black spider with mirrored layout.
- 4GA copper push ing terminal.
**Product Exclusive to USA**
Technical Data
Model |
3S-124 |
Voice Coil Diameter inch |
3’’ |
Impedance Ohm |
2X4 |
Re Ohm |
6 |
FS Hz |
38.180 |
Qms |
5.806 |
Qes |
0.586 |
Qts |
0.532 |
Vas Liter |
25.573 |
Cms |
71.257u |
MMS gr |
243.85 |
Xmax mm |
18.5 |
SPL(1w/1m) |
85.7 |
BL TESLA M |
24.47 |
Power W RMS |
1500 |
Max Power |
3000 |
